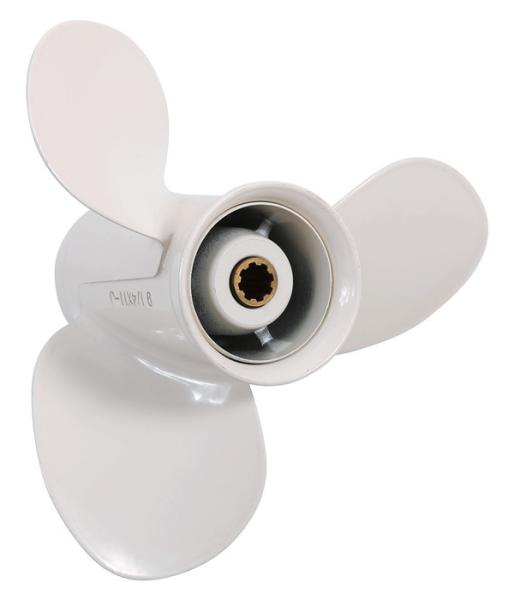

Outboard Propeller 9 1/4X11-J Aluminum Alloy Propeller For Yamaha
Boat Motor 15HP
Main Specification
Type: Outboard motor propeller
Size: 9 1/4X11-J pitch
Fit for : Yamaha outboard motor
MOQ.: 5pcs
Leading time: 5-7 days after payment
This information is critical to determining the correct propeller
for your application:
1.3 Blades
3- blade propeller usually offer s top speed performance.
2. Diameter:
Diameter is the distance across a circle encompassing all of the
propeller blades.
3. Pitch:
Pitch is the theoretical distance a propeller will move through the
water of each revolution.
4. Right hand or left hand Rotation
In most cases, right hand propellers are used for single engine
application and one left hand propellers are used for twin engine
applications to achieve better steering control.
5. Cupped Blades:
This is a technique used to enhance the performance of propellers
under certain conditions. A cupped propeller will exhibit very high
efficiency at high speeds as well as minimize cavitation under
heavy loads.
6. Rake:
Rake is special design feature. Positive rake benefits from normal
bow lift to permit the use of a larger diameter propeller, while
negative rake can provide extra blade strength for use in very high
speed applications.
Propeller Basics: 9 1/4x11-J
| Diameter | Pitch | Blades |
| inches | mm | inches | mm | |
| 7 1/4 | 184.15 | 5 | 127.00 | 3 |
| 7 1/4 | 184.15 | 6 | 152.40 | 3 |
| 7 1/2 | 190.50 | 7 | 177.80 | 3 |
| 7 1/2 | 190.50 | 8 | 203.20 | 3 |
| 9 1/4 | 234.95 | 8 | 203.20 | 3 |
| 9 1/4 | 234.95 | 9 | 228.60 | 3 |
| 9 1/4 | 234.95 | 10 | 254.00 | 3 |
| 9 1/4 | 234.95 | 11 | 279.40 | 3 |
| 9 7/8 | 250.83 | 10 1/2 | 266.70 | 3 |
| 9 7/8 | 250.83 | 12 | 304.80 | 3 |
| 9 7/8 | 250.83 | 13 | 330.20 | 3 |
| 11 1/8 | 282.58 | 13 | 330.20 | 3 |
| 11 5/8 | 295.28 | 11 | 279.40 | 3 |
| 11 3/8 | 288.93 | 12 | 304.80 | 3 |
| 13 1/2 | 342.90 | 15 | 381.00 | 3 |
| 13 1/4 | 336.55 | 17 | 431.80 | 3 |
| 13 | 330.20 | 19 | 482.60 | 3 |
| 13 3/4 | 349.25 | 15 | 381.00 | 3 |
| 13 | 330.20 | 17 | 431.80 | 3 |
| 13 3/4 | 349.25 | 17 | 431.80 | 3 |
| 13 3/4 | 349.25 | 19 | 482.60 | 3 |
| 14 1/2 | 368.30 | 19 | | |
Main Advantages
1. smaller diameter of the propeller hub can reduce the total
propeller weight, increase the ship speed, energy-efficient and
also lower the manufacture cost of the propeller
3. the high quality material makes sure longer serving life for the
propeller
Company Profile
Qingdao Yonghexing Houseboat Propeller Factory was founded in
2000,located in JIMO district Qingdao city China .We are a
professional manufacturer in outboard /stern drive propellers and
impellers for personal watercraft vehicles.
Our propeller can match the size and type with YAMAHA,
MERCURY,HONDA,SUZUKI,TOHATSU and other brands engines
.
Meanwhile,We also produce marine anodes,and other accessories made
by copper ,aluminum alloy ,rubber, Stainless steel and numerical
control matching for outboard motors.
We have always been instilling a high level of quanlity
consciousness and controlling every aspect of quanlity in terms of
thickness ,corrosion resistance ,resistance against rust and
collisions ,also we installed analysis equipment to assist the
inspection and testing process .
After many years of develpment ,Our propellers are distributed to
25 contries and regions in the world and recognized by more and
more customers .We are constantly improving process and striving
even higher.
FAQ
- How many engineers are there in your R & D department?
There are more than 8 experienced engineers in my company, in which
there are 3 of them are working in R & D department.
- What is the lead time for the general production order?
About 1 months according to the quantities.
- What's your strength?
We are specialized in marine propeller ,Jet Ski Impeller , all
kinds of aluminum alloy leisure boat ,fishing boat ,working boat .
we have been suppling to global market for over 8 years with good
quanlity ,competitive price and a wide range of categories .
